Stationary batching plants

Home » Machinery » Stationary Plant

Our batching plants

Our stationary concrete batching plants are fixed installations used for the production of concrete. They are composed of a series of equipment that weighs, mixes and discharges the concrete components.

Stationary concrete batching plants are larger and more complex than mobile plants, and can produce concrete at a much higher rate. This makes them ideal for large-scale construction projects, such as the construction of buildings, bridges and roads.

Instalaciones leblan en zaragoza

Components of a stationary concrete batching plant

  • 9Loading system: This system loads the aggregate into the batching and weighing hoppers.
  • 9Silos and storage hoppers: These hoppers store the concrete ingredients, such as cement, aggregates and water.
  • 9Batching and Weighing System: These systems batch and weigh the concrete ingredients to ensure that they are mixed in the correct proportions.
  • 9Mixer: This machine mixes the concrete ingredients until a uniform mass is formed.
  • 9Discharge systems: This system discharges the concrete from the mixer into trucks or containers.

Do you need more information about our stationary plants ?

Classification

Stationary concrete batching plants can be classified according to their mixing method. Dry mixing plants mix the dry concrete components before adding the water. Wet mixing plants mix all the ingredients at the same time.

Stationary concrete batching plants can also be classified according to their production capacity. Small capacity plants produce up to 20 cubic meters (26 cubic yards) of concrete per hour. Large capacity plants produce more than 90 cubic meters (118 cubic yards) of concrete per hour.

Stationary concrete batching plants are an important part of the construction industry. They allow the production of high quality concrete at a constant rate, which is essential for large-scale construction projects.

Our models

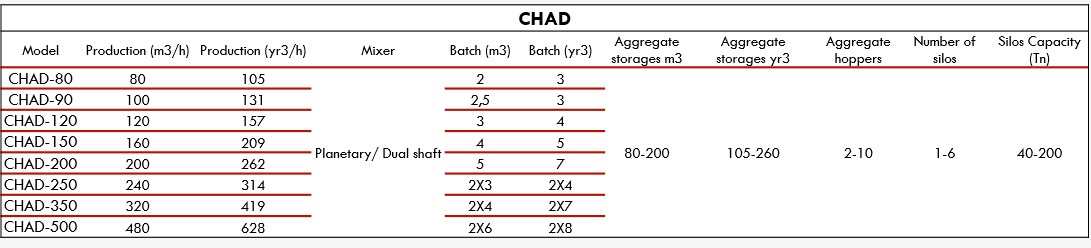

CHAD

  • 9Central Mixed and Dosed Concrete.
  • 9Stationary wet process plant.
  • 9Multiple combinations and options.
  • 9Installations adapted to the customer's needs.
maquinaria tratamiento de residuos
maquinaria tratamiento de residuos

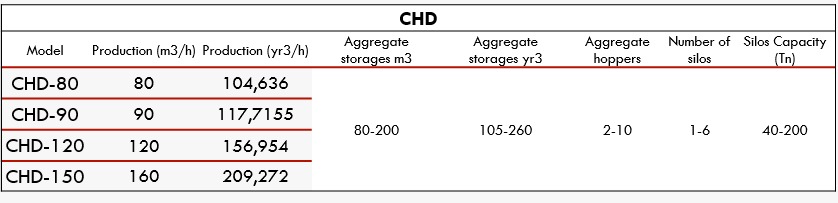

CHD

  • 9Dosed Concrete Plant.
  • 9Stationary dry way installation.
  • 9Multiple combinations and options.
  • 9Plants adapted to the customer's needs.

Would you need more information about our equipments ?
