Our batching plants
Our mobile concrete batching plants are facilities that are used for the production of concrete on the construction site. They consist of a series of equipment that weighs, mixes and discharges the concrete ingredients.
Mobile concrete batching plants are smaller and more compact than stationary plants, and can be easily transported from one location to another. This makes them ideal for small to medium scale construction projects, or for projects that are in remote or difficult to access locations.
Components of a mobile concrete batching plant
- 9Loading system: This system loads the aggregate into the batching and weighing hoppers.
- 9Silos and storage hoppers: These hoppers store the concrete ingredients, such as cement, aggregates and water.
- 9Batching and weighing system: These systems batch and weigh the concrete ingredients to ensure that they are mixed in the correct proportions.
- 9Mixer: This machine mixes the concrete components to form a uniform mass.
- 9Discharge systems: This system discharges the concrete from the mixer.
mobile plants?
Classification
Mobile concrete batching plants can be classified according to their mixing method. Dry way mixing plants mix the dry concrete components before adding water. Wet way mixing plants mix all the ingredients at the same time.
Mobile concrete batching plants can also be classified according to their production capacity. Small capacity plants produce up to 20 cubic metres of concrete per hour (26 cubic yards per hour). Large capacity plants produce more than 90 cubic metres of concrete per hour (118 cubic yards per hour).
Advantages
- 9Flexibility: They can be easily transported from one location to another, which makes them ideal for small to medium scale construction projects, or for projects in remote or difficult to access locations.
- 9Cost savings: They can be more cost-effective than stationary plants, especially for short-term projects.
- 9Reduced environmental impact: They can reduce the environmental impact of construction, as they do not require the transport of concrete from a stationary plant.
Mobile concrete batching plants are an important part of the construction industry. They allow the production of high quality concrete on site, which is essential for small to medium scale construction projects.
Our models

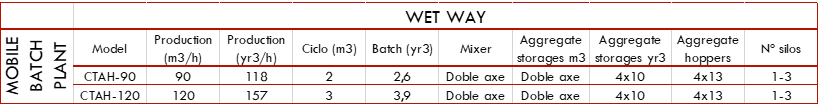

CTAH
- 9Transportable Horizontal Mixing Plant.
- 9Mobile wet way plant.

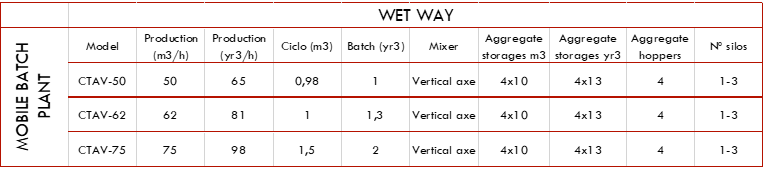

CTAV
- 9Transportable Vertical Mixing Plant
- 9Mobile wet way plant.

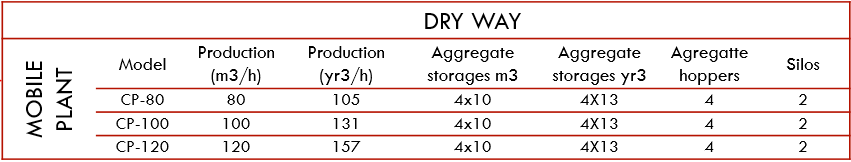

CP
- 9Central Concrete Production Plant
- 9Mobile dry way plant.
- 9Dosage by counter.

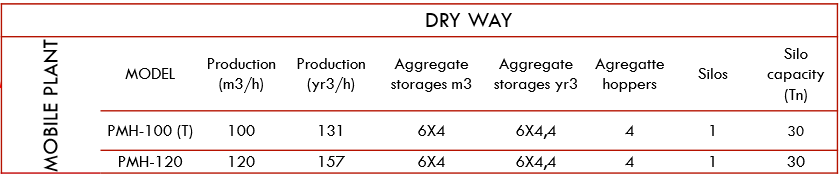

PMH
- 9Mobile Concrete Plant
- 9Mobile dry way plant.
Would you need more information about our equipments ?
